Utvändigt

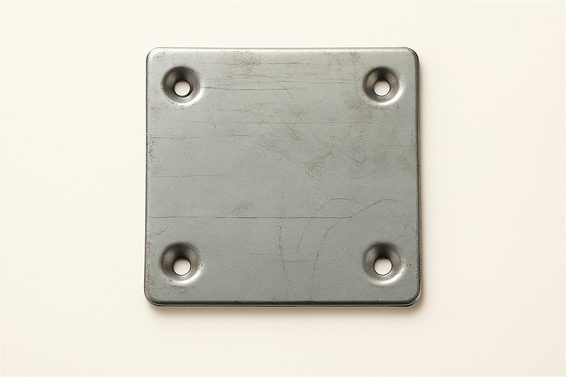

Step protection for LED spots incl. screw.

Screwed onto the ceiling.

Step protection for round LED panels incl. screw.

Screwed onto the ceiling.

Fan 230 V. Mounted on elevator car roof.

Dimensions: 120x120x38 mm

Requires fan cable 8-09-5183.

White lacquered fan grille.

135x135mm

Step protection for fan / transformer / spotlight.

Fan cable for 8-09-5180.

L=2 m.

Fan 12 V. Mounted on elevator car roof.

Dimensions: 120x120x25mm

Fan 24 V. Mounted on elevator car roof.

Dimensions: 120x120x25mm

Vibration damper. Kit = 4 x.

Positioned between car floor and support frame in order to reduce resonant sound.

150x100x8 mm

Toe board mounted on elevator car roof.

New requirement according to EN81-20 to protect personnel in

the shaft from falling objects.

Size adjusted and mounted in place by

the elevator fitter. Mounted using regular mounting screw

(not included) with the wider flange of the toe board

to the car roof, approx. 20 mm from the edges of the roof.

Roof mounting support frame L=400 mm.

Kit = 2 x.

Incl. double-sided tape.

For mounting between elevator car roof and support frame fitting.

Roof mounting support frame L=600 mm.

Kit = 2 x.

Incl. double-sided tape.

For mounting between elevator car roof and support frame fitting.

Floor attachment wooden floor/support frame.

Kit 4 x. Ø = 10mm. Centre hole threaded M12.

Incl. Screw bag 8-02-4017, 8 x hexagon head wood screw + washers.

Rubber dampers not included.

Beam underlay as a reinforced attachment between the wooden car roof and supporting frame fittings.

Set = 2 pcs. Includes wood screw and double-sided tape.

Contents:

2 pcs Plywood 600x300x24mm.

12 Wood screws 4x40mm.
